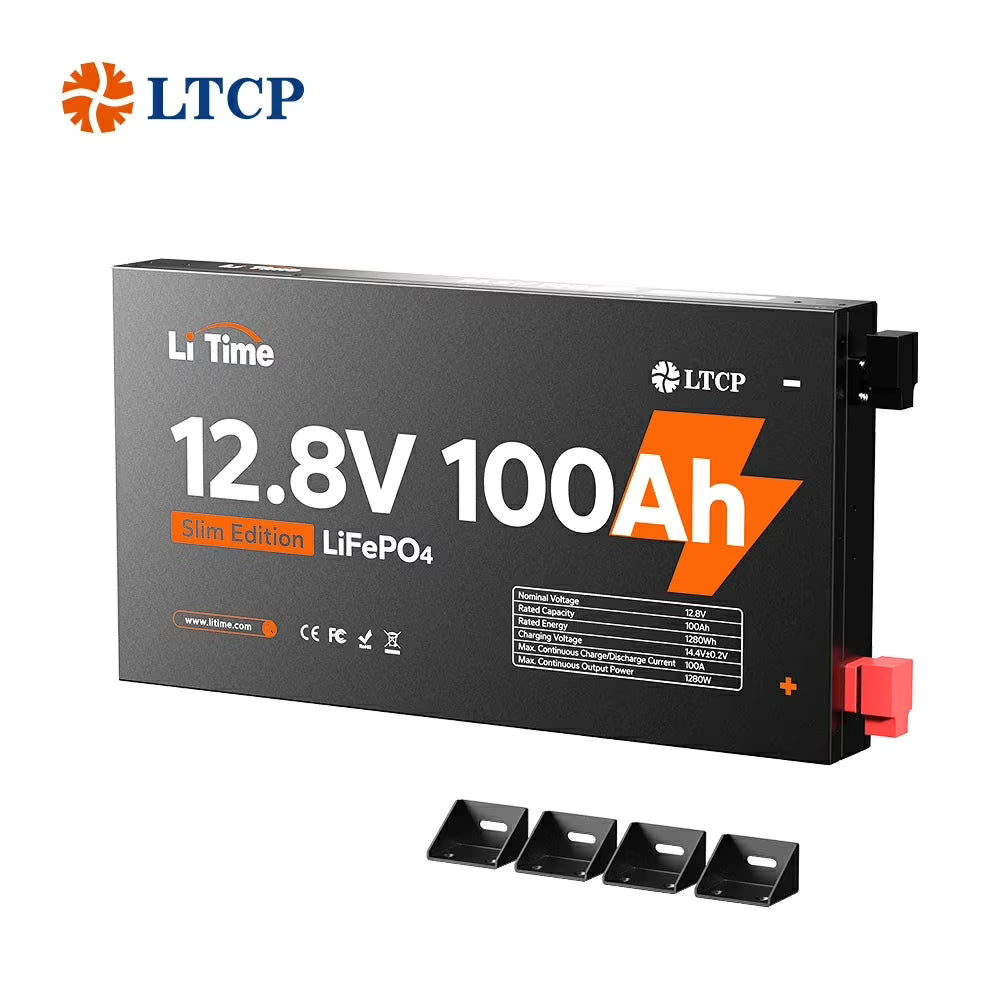

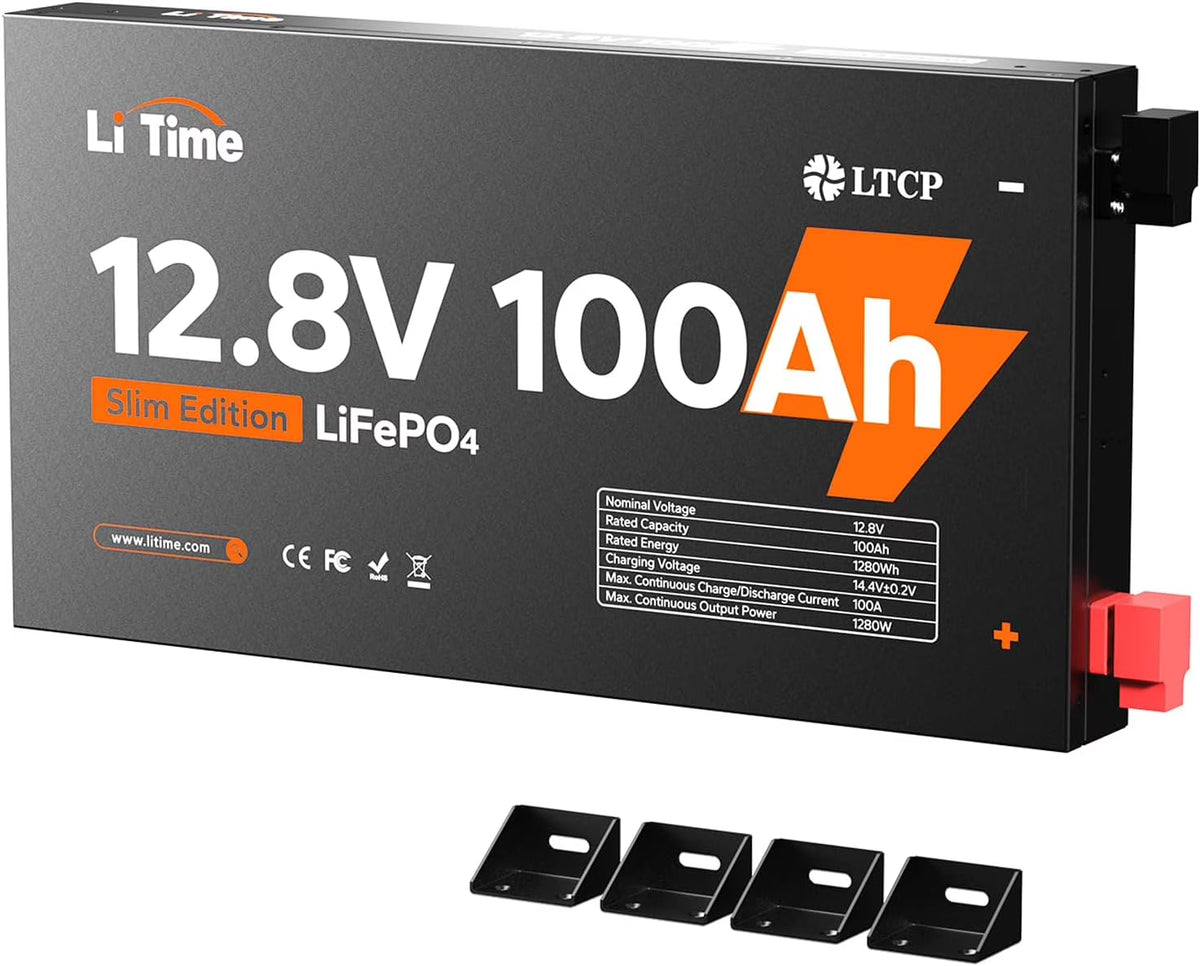

LiTime 12V 100Ah Slim LiFePO4 Battery-2.36" Ultra-Thin Design, Built-in 100A BMS with Low-Temp Protection, Fits into Tight Spaces, Ideal for RV, Solar & Marine Use

LiTime Bluetooth 12V 100Ah 2.36" Ultra-Thin lithium battery adopt Automotive Grade LiFePO4 Cells. And LiTime lithium battery insist on providing the customer with an environmentally friendly green power solution. This battery built in a battery management system (BMS). BMS provides all kinds of protection for the battery and customer, equipped with Over charge and short circuit protection. Lighter and longer life span with 4000-15000 cycles makes this the ideal battery for all your Deep Cycle applications, such as, Solar / wind  energy systems, Off Grid systems, RV, Camping, Backup power systems and much more.

SPECS

BATTERY

1. Cell Type LiFePO4
2. Warranty 5 Years

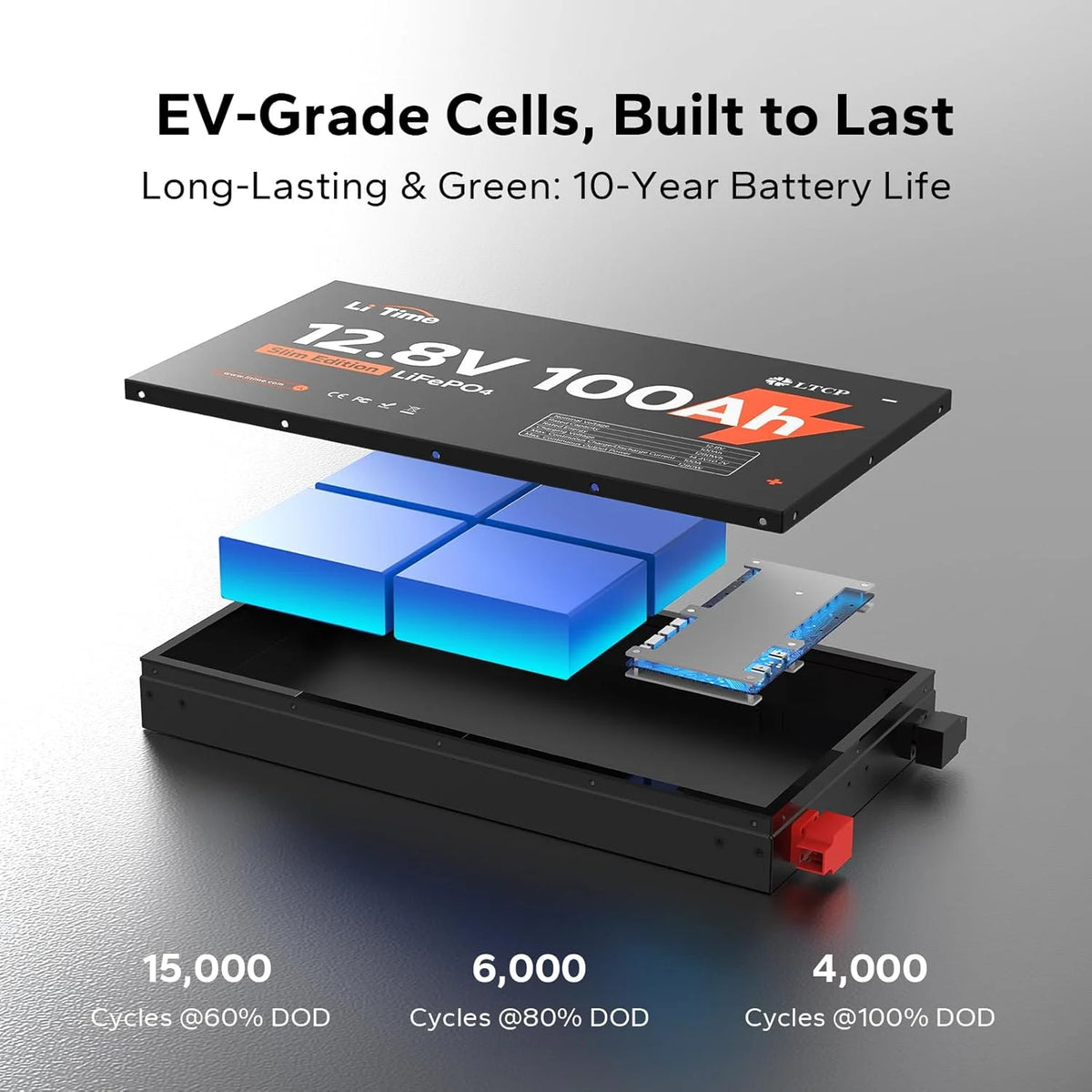

3. Cycle Life 4000+
4. Nominal Voltage 12.8V
5. Rated Capacity 100Ah
6. Energy 1280
7. Max. Expansion (Parallel & Series) 4P4S
8. Internal Resistance 40m
9. Certifications UL-1973,FCC,CE,RoHS,UN38.3

BMS

1. BMS 100A
2. Max. Continuous Output Power 1280
3. Max. Continuous Charge Current 100A
4. Max. Continuous Discharge Current 100A
5. Max. Discharge Current 1 Second 500A

CHARGE

1. Charge Method CC/CV
2. Charge Voltage 14.4 0.2V
3. Recommend Charge Current 20A

TEMPERATURE

1. Charge Temperature 0 to 50 / 32 to 122
2. Discharge Temperature-20 to 60 / -4 to 140
3. Storage Temperature-10 to 50 / 14 to 122

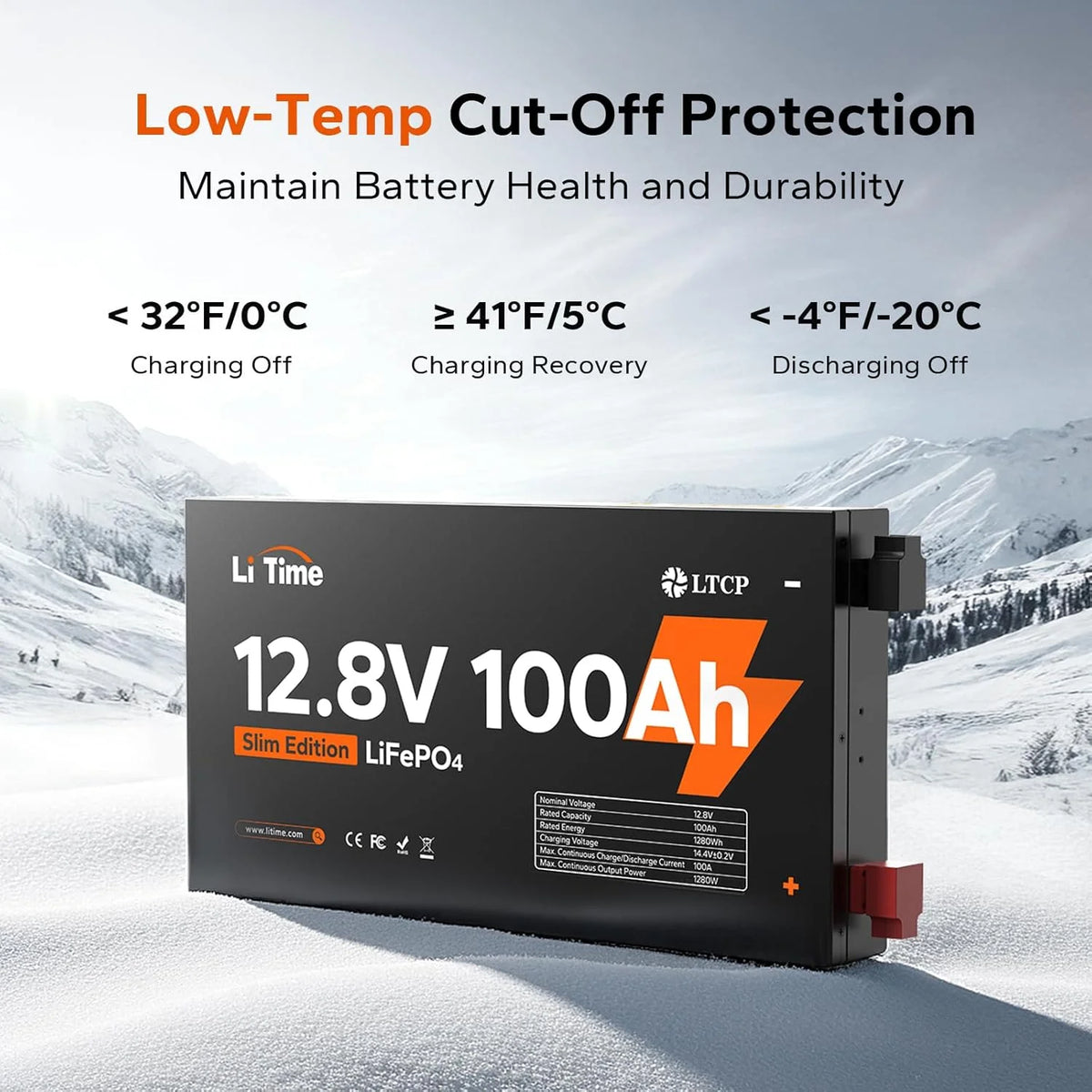

4. Low-Temperature Protection

OTHERS

1. Terminals 6 Bolts
2. Weight Approx.32.89 lbs
3. Size 20.87*11.02*2.36 in
4. Housing Material Steel Plate Cold Common (SPCC)
5. Protection Class IP65

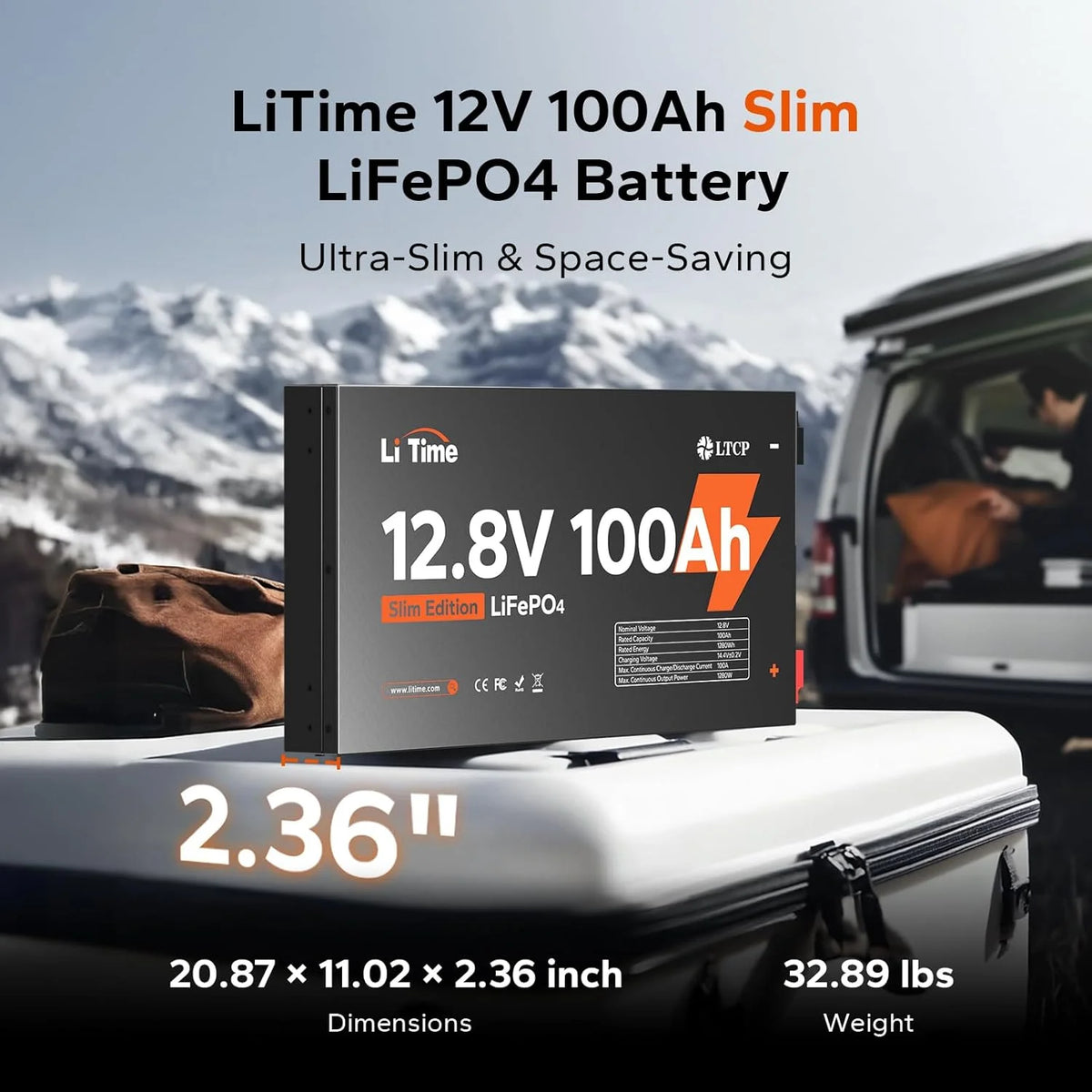

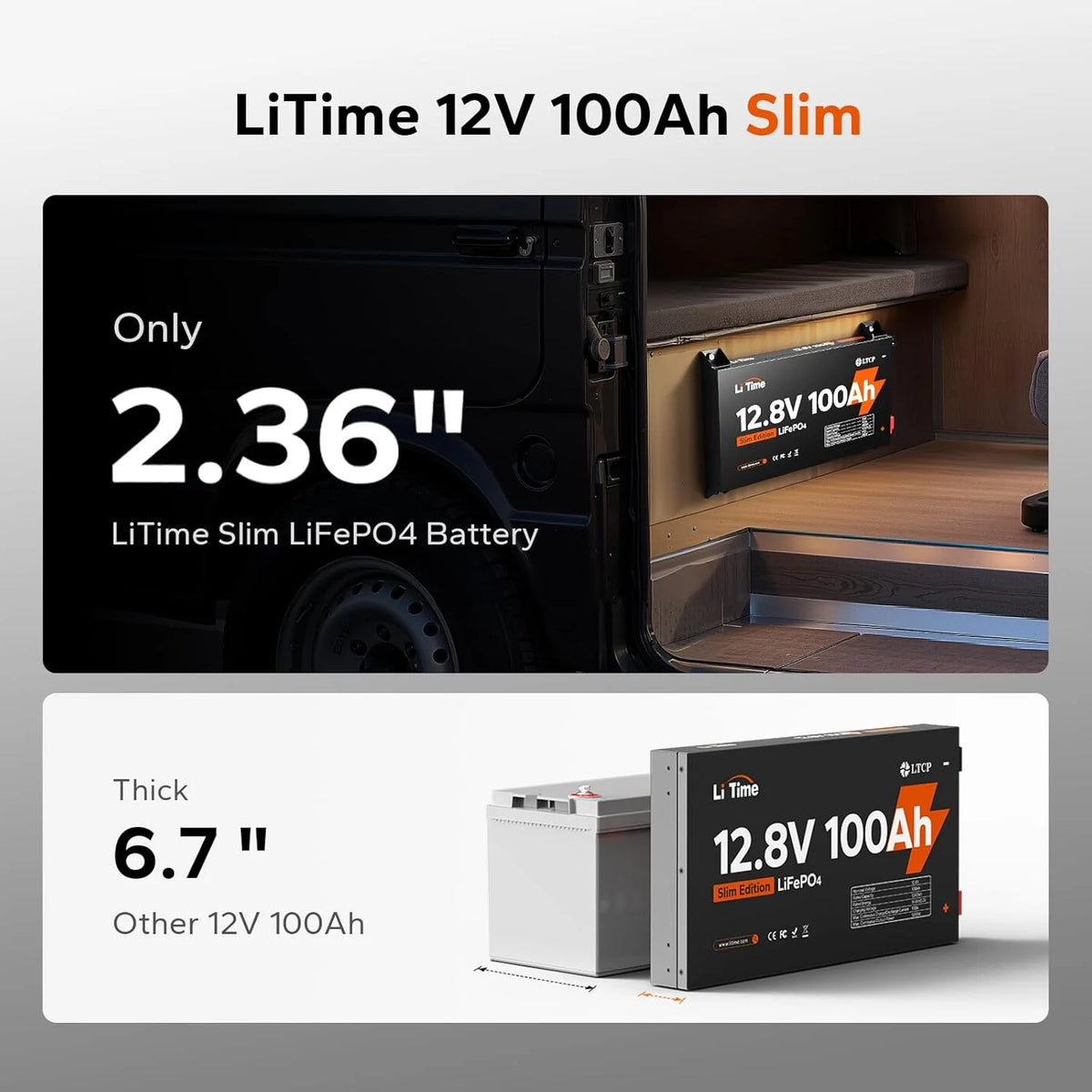

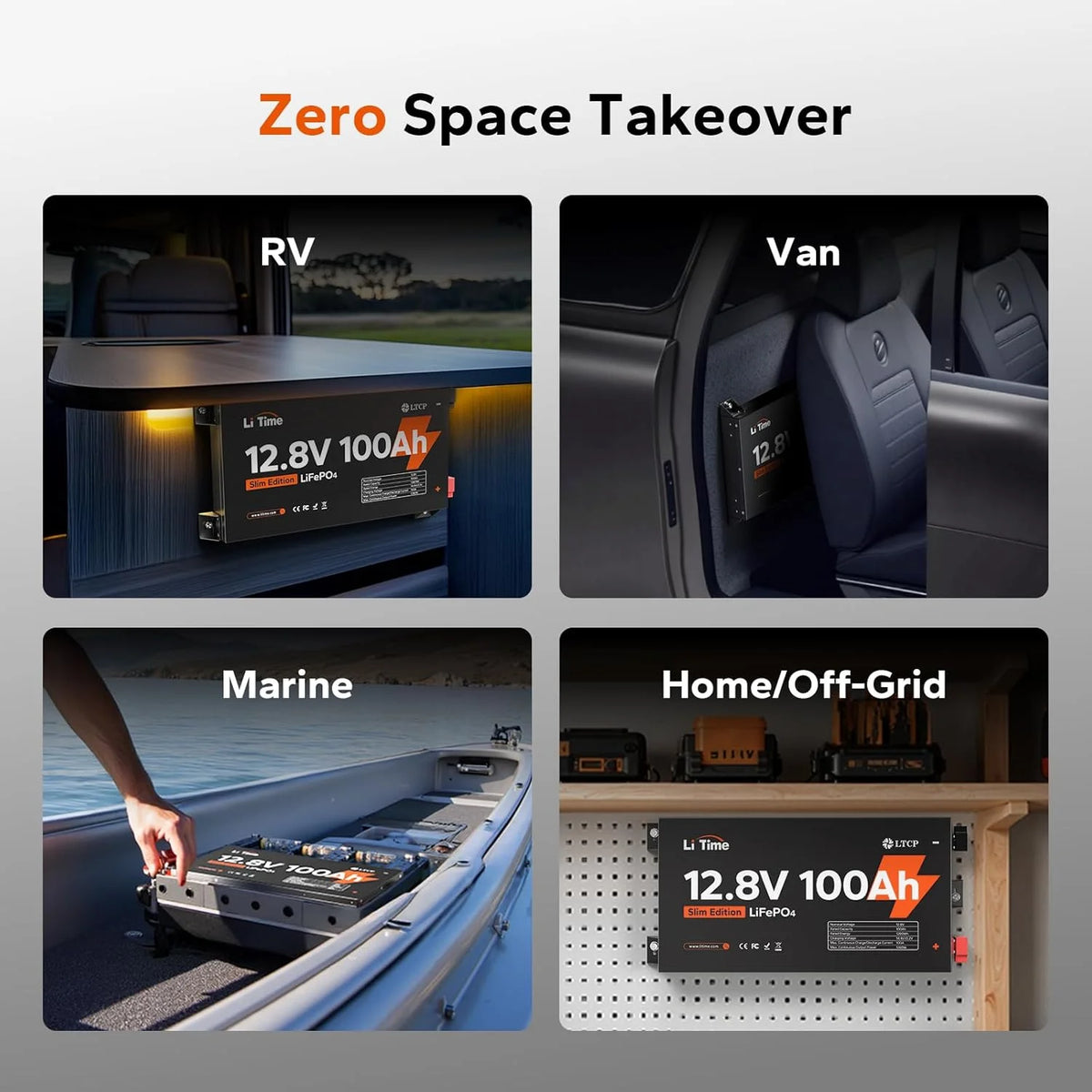

• LiTime Slim Battery: LiTime 12V 100Ah Slim LiFePO4 battery sets a new standard for compact energy storage. With a thickness of just 60mm (2.36 inches), it fits into tight spaces in saloon cars, ships, off-road vehicles, and pickup trucks, maximizing space efficiency. (Dimensions: L20.87" W11.02" H2.36")

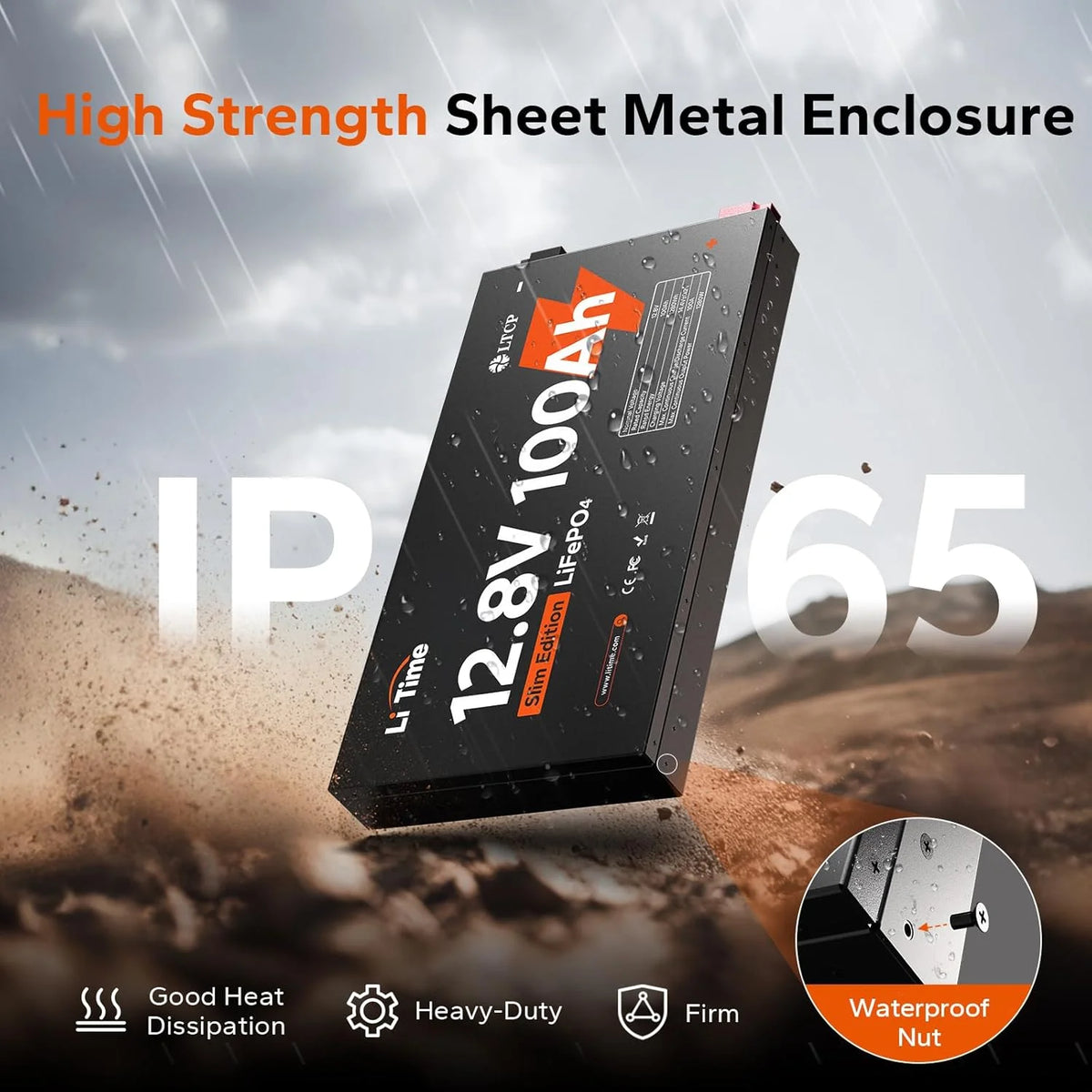

• Sheet Metal Casing: Unlike traditional plastic casings, the LiTime 12V 100Ah slim battery features a high-strength sheet metal casing for superior durability, impact resistance, and heat dissipation extending the battery's lifespan.

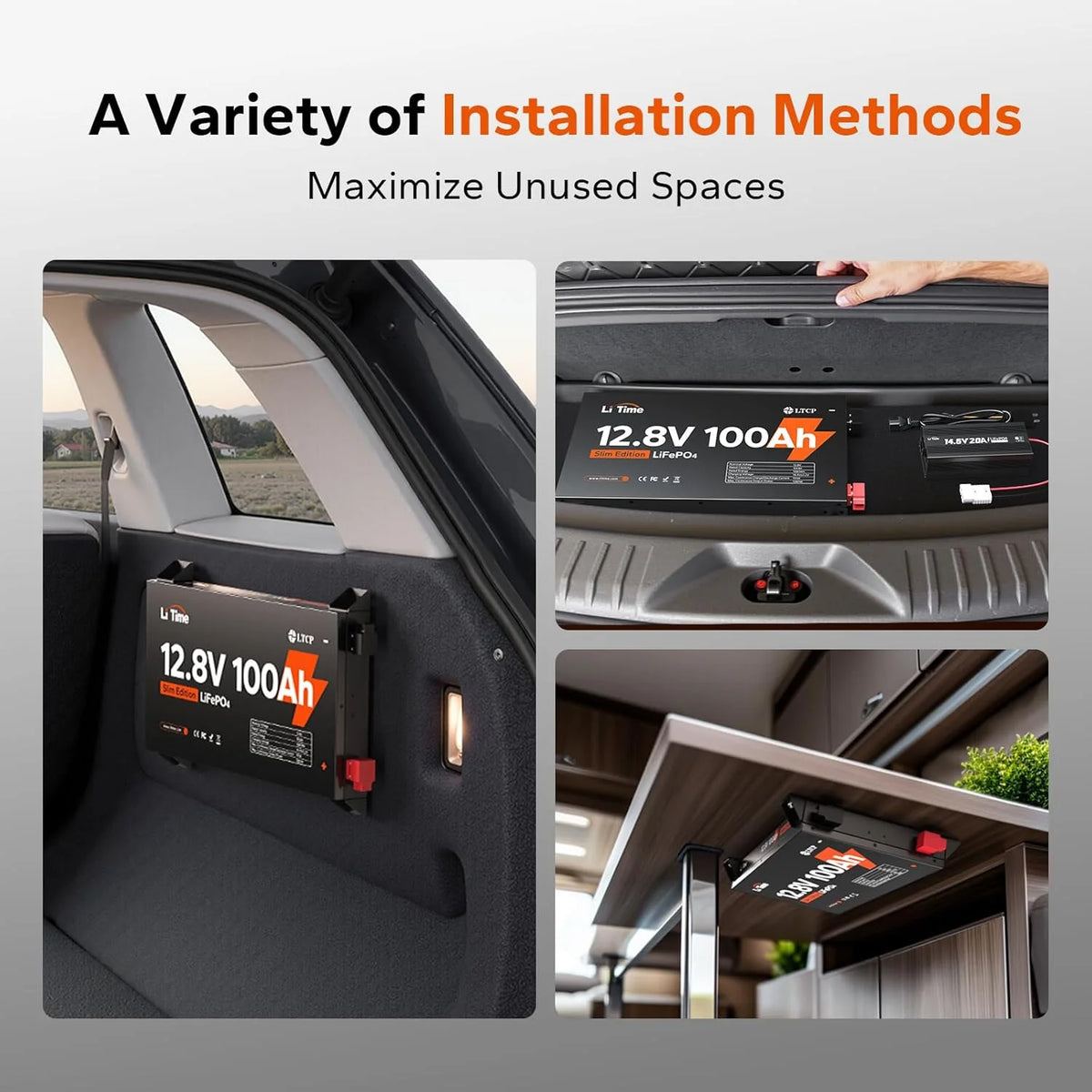

• Versatile Mounting Solutions: The 2.36-inch slim profile facilitates multi-scenario deployment. Featuring a dual-sided triangular bracket, users can flexibly assemble or secure batteries through directional adjustments. Supports installations on walls, floors, desks, and confined spaces in vehicle compartments or marine holds.

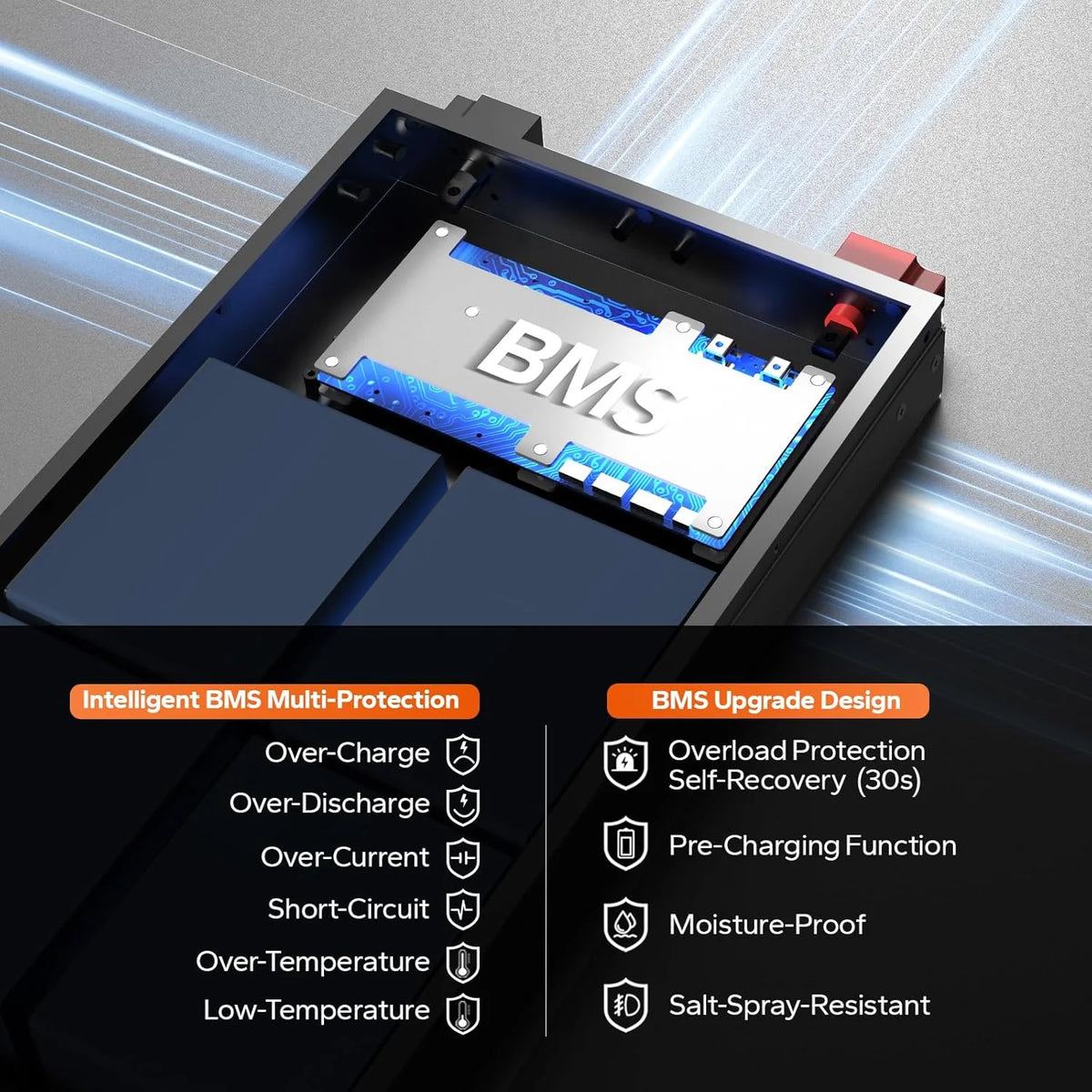

• 20+ BMS Protection Features: Including pre-charging function, over-temperature, low-temperature cut-off, over-charge, over-discharge, over-current and short-circuit protection, overload protection self-recovery(30s), salt spray resistance, moisture-proof and other protection functions.
• 5-Year Warranty: LiTime batteries come with a 5-year warranty!
