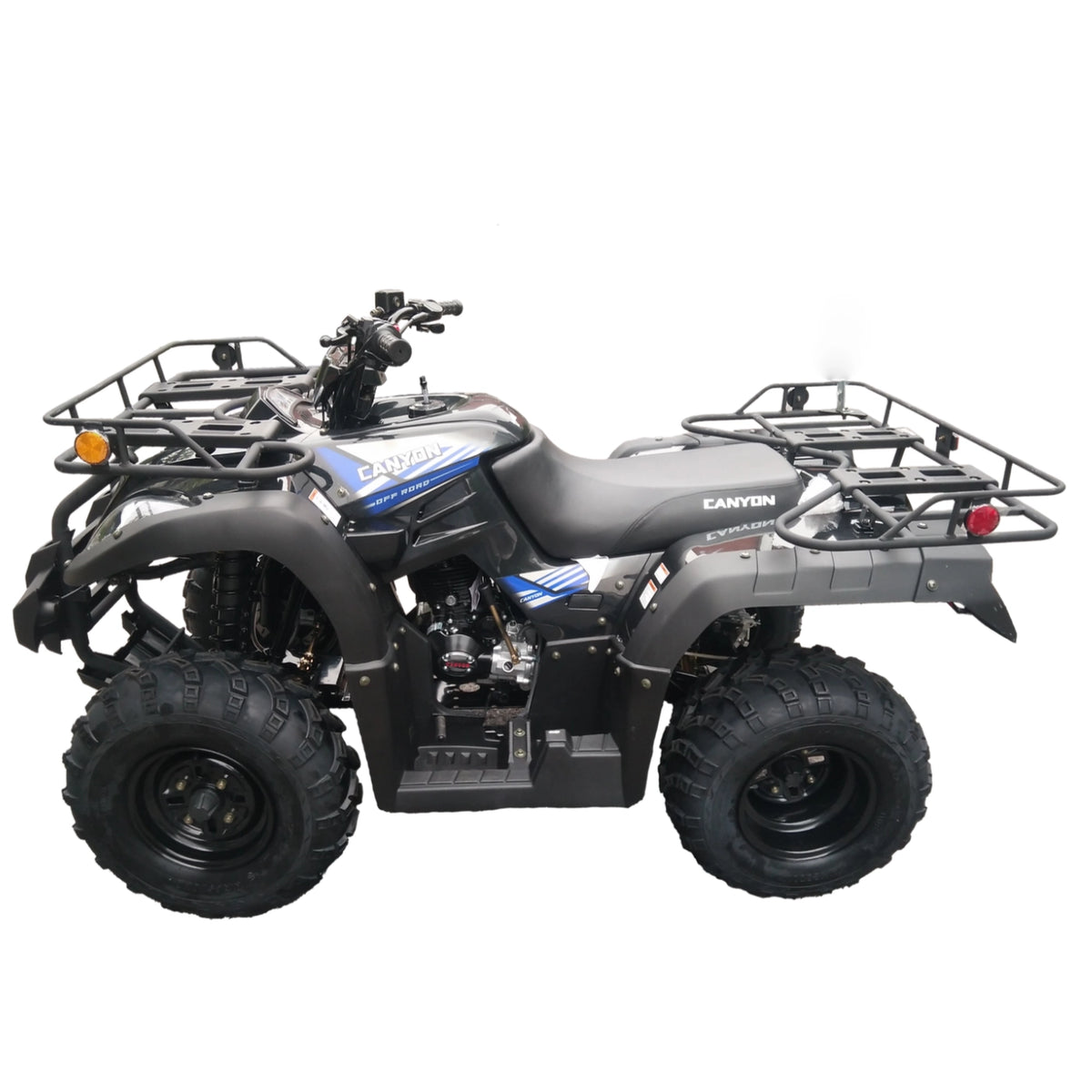

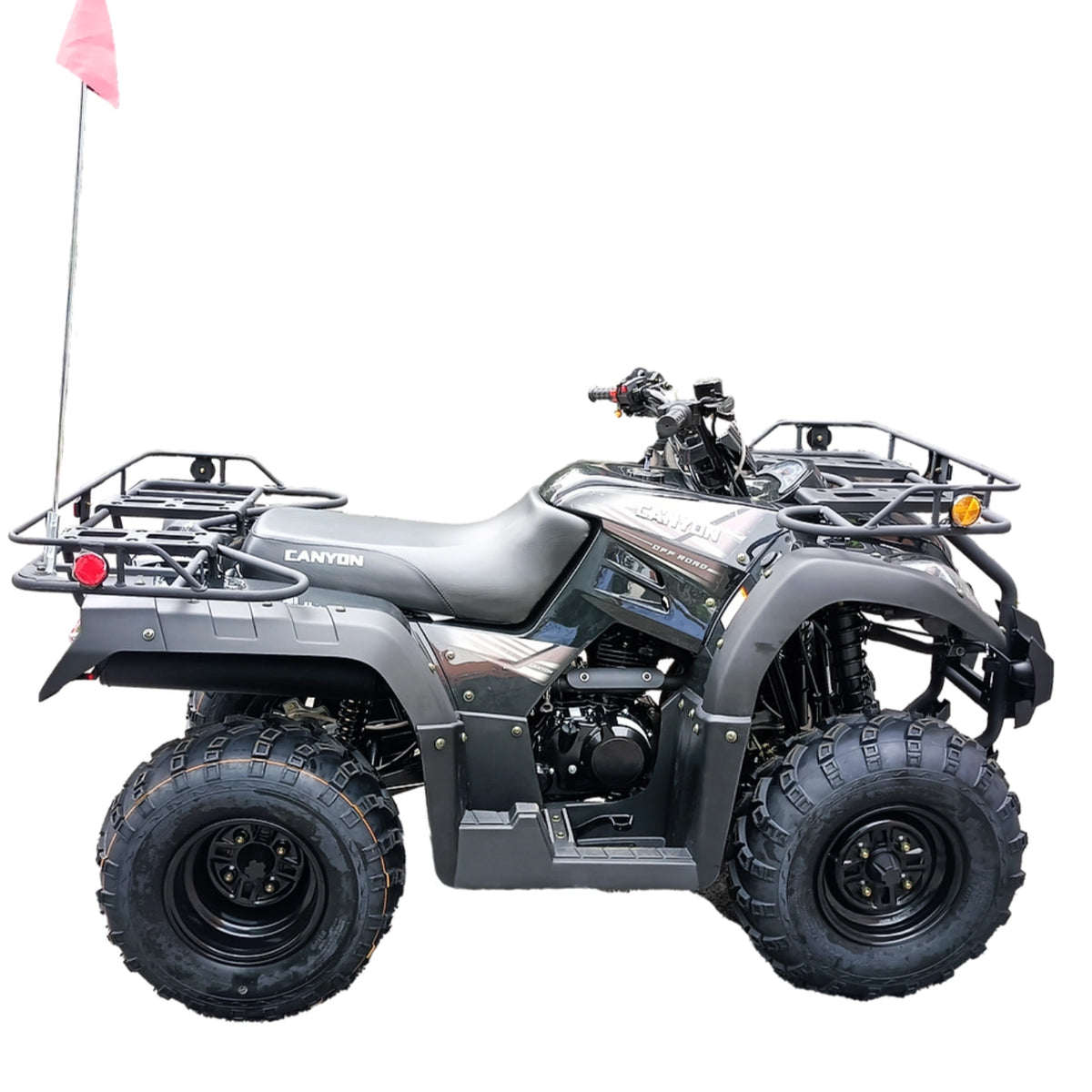

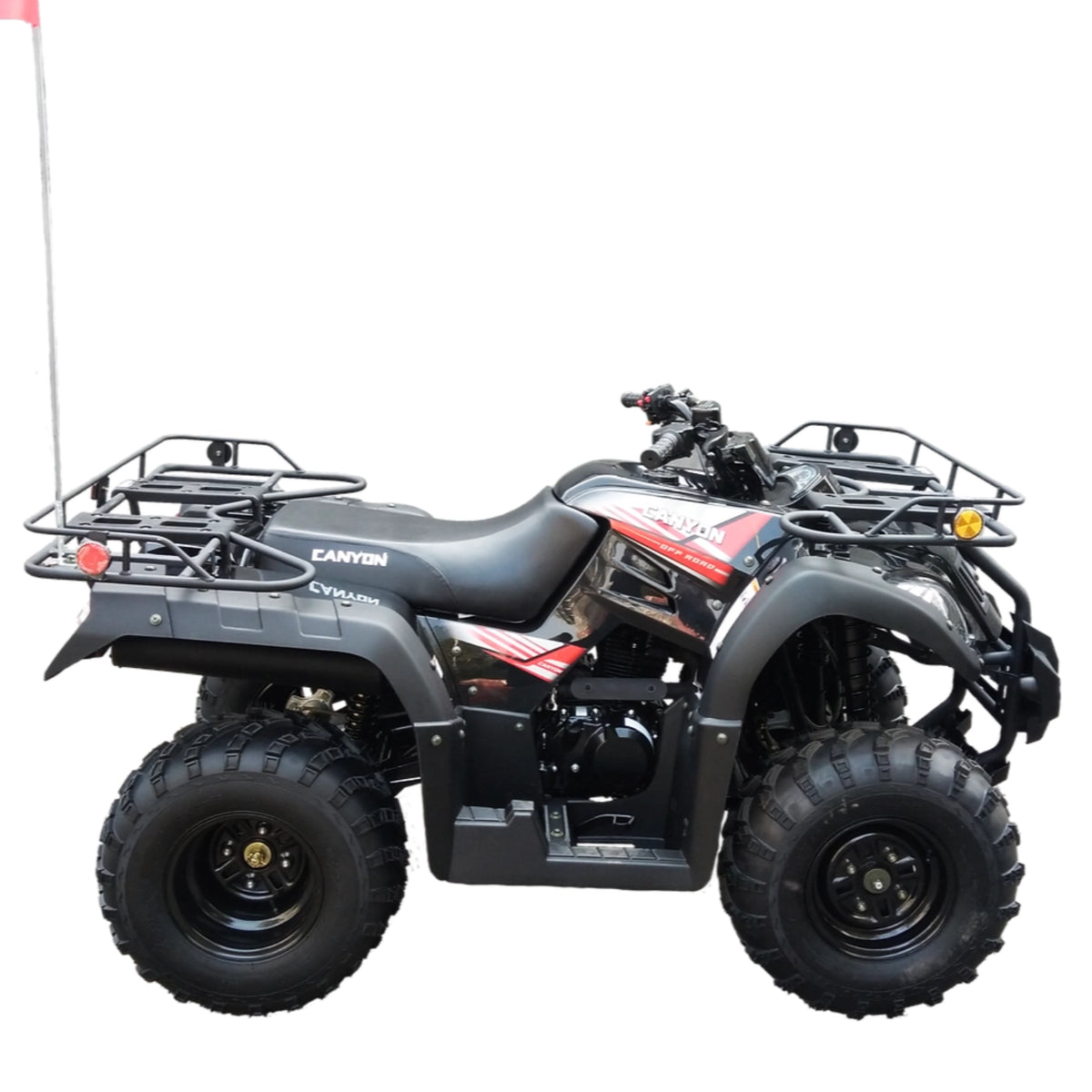

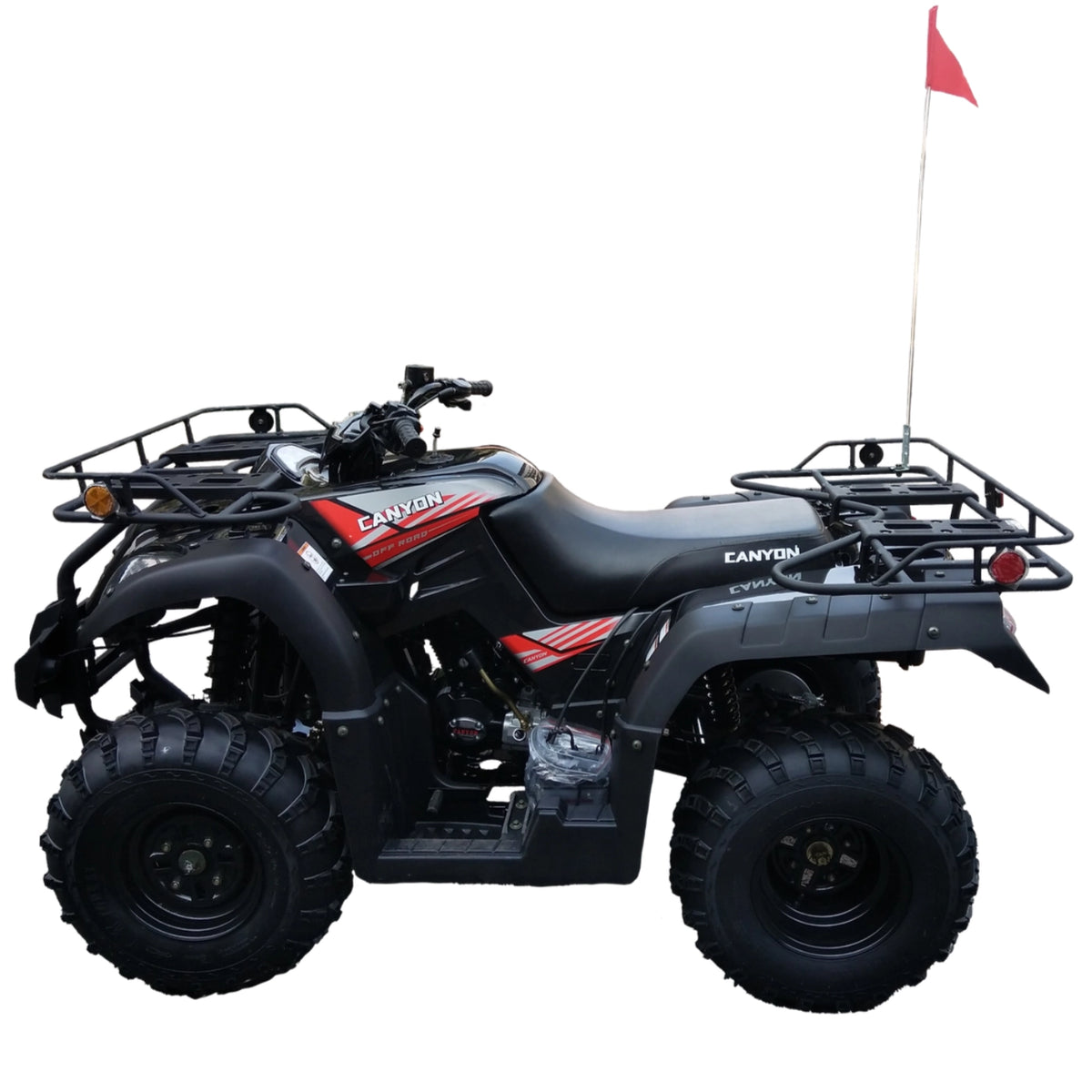

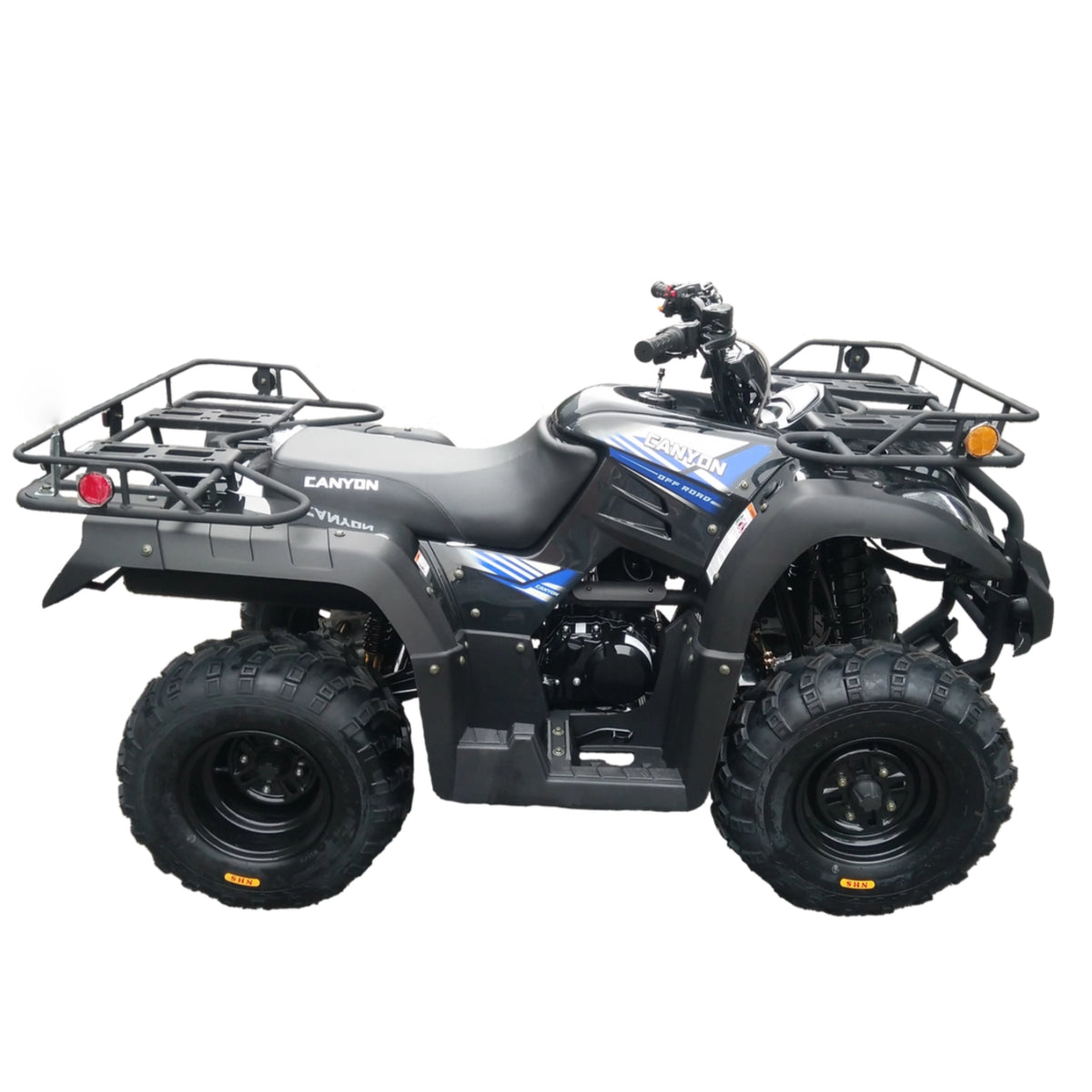

RPS Canyon 230 cc ATV

The RPS Canyon is quite the workhorse! If you are looking for a reliable ATV with enough power to carry practically anything, look no further. The Canyon has a maximum carrying capacity of 352 lbs, and we found it can reliably carry that amount while maintaining a comfortable cruising speed of about 35-40 MPH. The Canyon, despite its large engine, lacks some of the bulkiness and handling issues that other ATVs in this class tend to have, as its dual brake system ensures that it stops on a dime, and its acceleration is very smooth, leading to a very comfortable ride feel. A swing arm suspension means that it can handle the rockiest terrain you can throw at it, and still maintain a very smooth, comfortable ride. Overall, if you are looking for a work horse of a vehicle, but something that handles like an ATV half its size, the RPS canyon is a good fit.

Specifications:

Model Number: ATV-RPS-Canyon-250
Engine Type: Single Cylinder, 4-Stroke, Air-Cooled
Displacement: 229cc
Max Torque: 16.5N.m/5,500 500r/min (N.m/r/min)
Horsepower: 14.75 HP
Bore Stroke: 67mm x 65mm
Ignition: CDI
Starting System: Electric
Battery: 12V, 14Ah
Drive System: Shaft Drive
Clutch: 5 speed with Reverse, Semi Automatic
Transmission: Rear Wheel Drive

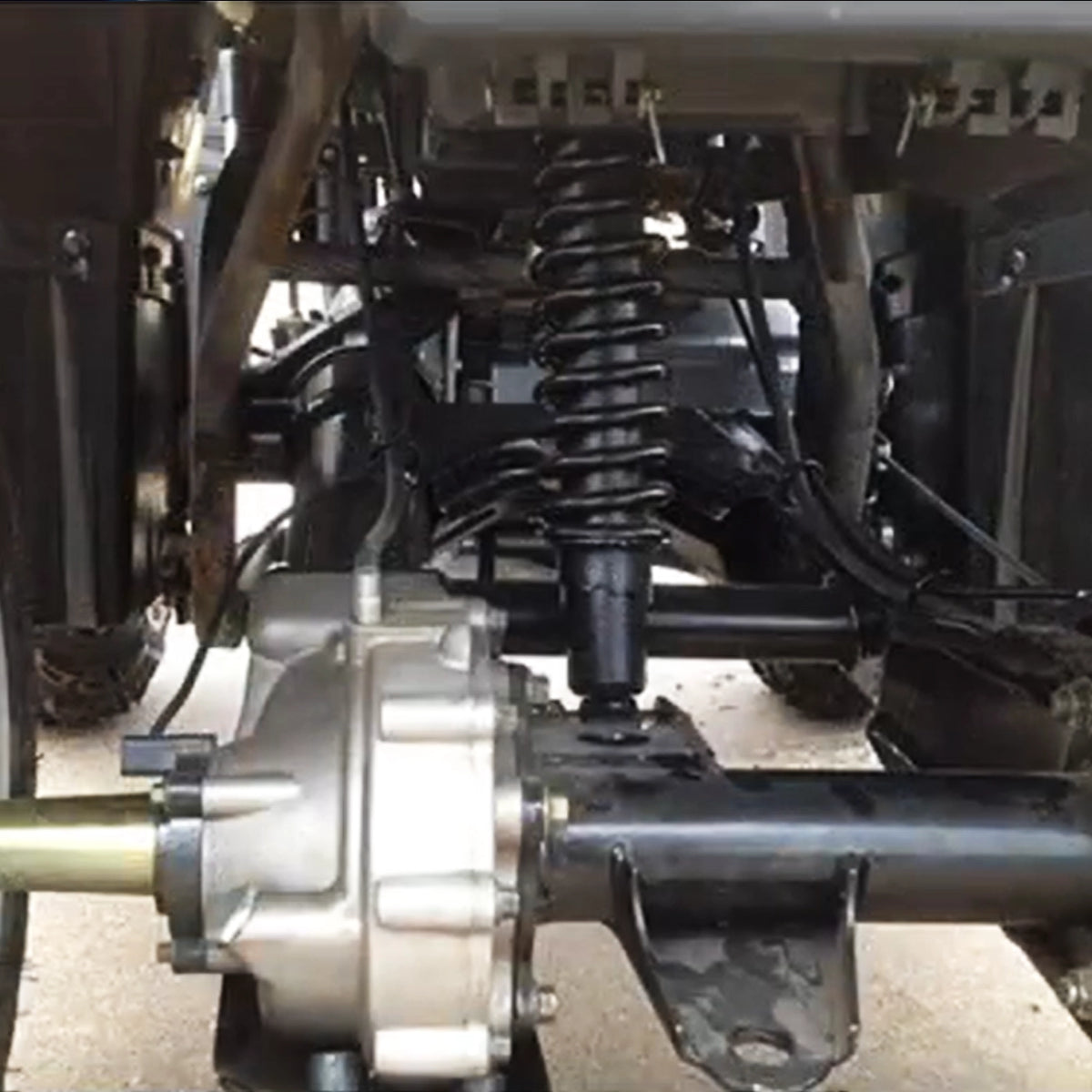

Suspension Type Front/Rear: McPherson Independent/Mono Swingarm
Brakes Front/Rear: Hydraulic Disc/Drum
Tires Front/Rear: 23 x 7-10 /22 x 10-10
Fuel Capacity: 3.1 gallons / 12L
Fuel Consumption: 58.8mpg
Fuel Type: 91 or Higher Octane, Unleaded Gasoline
Weight(G.W./N.W): 600 lbs/490 lbs
Max Load: 397 lbs / 180 kg
Wheelbase: 46" (1169mm)
Dimensions (L x W x H): 78" x 46" x 36" (1,5982mm x 1169mm x 915mm)
Height to Seat: 22.3" (567mm)
Min. Ground Clearance: 5.9" (149mm)
Passenger Capacity: Operator Only
Minimum Age Recommendation: 16 yrs old

RPS Canyon 230 cc ATV

• Reliable design for utility and performance
• Maximum carrying capacity of 352 lbs
• Comfortable cruising speed of 35-40 MPH
• Dual brake system for enhanced safety
• Smooth acceleration for a comfortable ride
