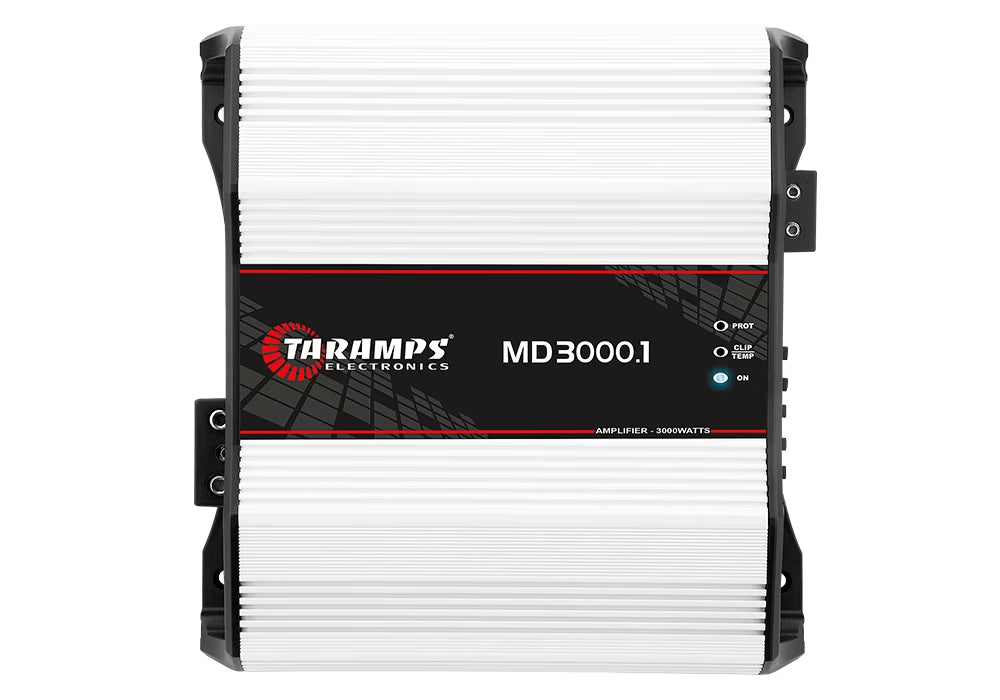

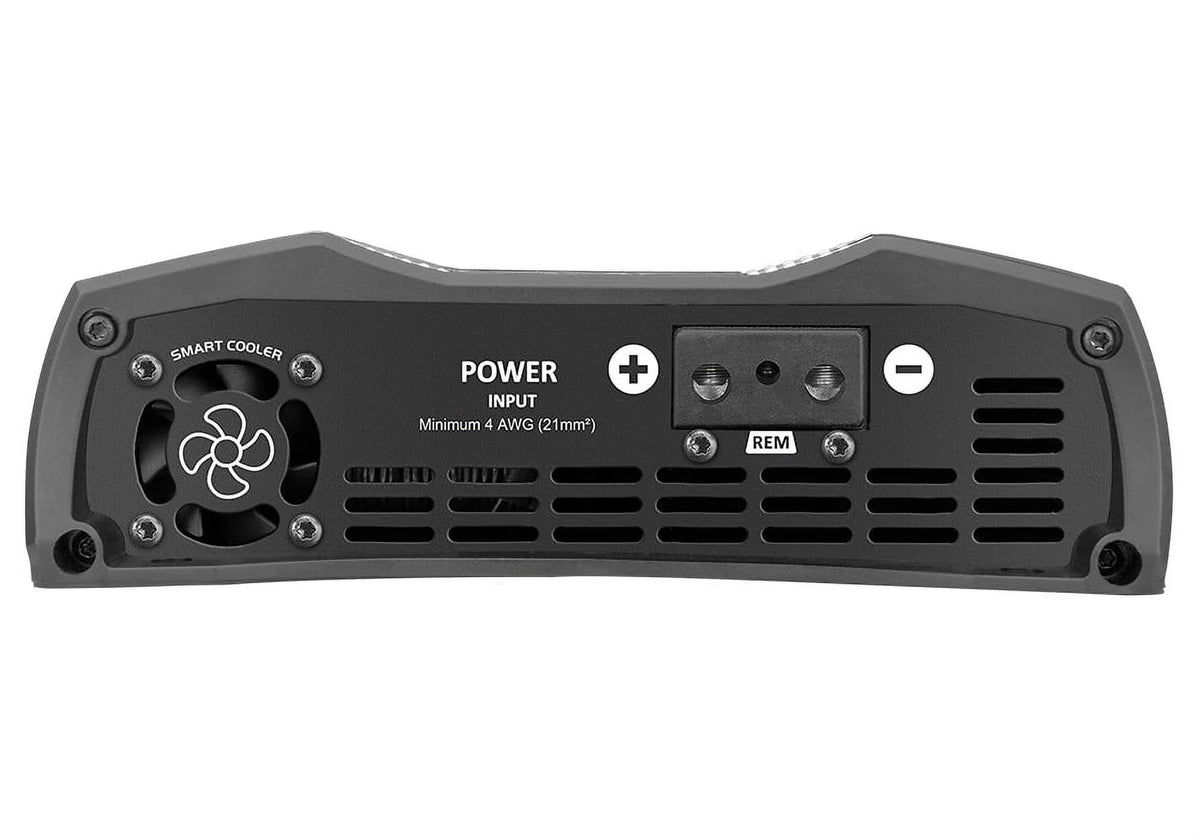

Taramps MD 3000.1 4 Ohms 3000 Watts Amplifier
Taramps MD 3000.1 4 Ohms 3000 Watts Amplifier
The MD 3000.1 4 OHMS amplifier module, is carefully designed with the highest technology, and high performance for automotive sound systems. It is a mono amplifier and its maximum power is 3000W RMS with 4 OHMS impedance, and one 3000w RMS channel. The MD 3000 is FULL RANGE this way you appreciate all the frequencies in the right measure.
| OPERATION CLASS | Class D |
|---|---|
| NUMBER OF CHANNELS | 01 |
| MAXIMUM POWER | @ 12,6 VDC - 4 OHMS: 3000W RMS @ 12,6 VDC - 8 OHMS: 1920W RMS |
| INPUT SENSITIVITY | 220 mV |
| SIGNAL TO NOISE RATIO | >90dB |
| FREQUENCY RESPONSE | 10Hz ~ 18KHz (-3dB) |
| CROSSOVER HIGH PASS (HPF) | 10Hz ~ 90Hz (-12dB/8a) Variable |
| CROSSOVER LOW PASS (LPF) | 90Hz ~ 18KHz (-12dB/8a) Variable |
| BASS BOOST | 0 ~ 10dB (50Hz) Variable Frequency (35 ~ 55) |
| EFFICIENCY | 85% |
| INPUT IMPEDANCE | 15K Ohms |
| OUTPUT IMPEDANCE | 4 OHMS |
| PROTECTION SYSTEM | Short-Circuit to Output, Short on output compared to GND, Low impedance at output, low/high supply voltage and Thermal protection. |
| MIN. SUPPLY VOLTAGE | 9VDC |
| MAXIMUM POWER SUPPLY VOLTAGE | 16VDC |
| CONSUMPTION AT REST | 1.2 A |
| MAXIMUM MUSIC CONSUMPTION | 138.8 A |
| MAXIMUM CONSUMPTION IN SINUSOIDAL SIGNAL | 277.7 A |
| DIMENSIONS (H X W X D) MM | 8.98" x 2.76" x 8.58" |
| WEIGHT | 5.5lb |
| EAN | 7898556844666 |
MD 3000.1 4 Ohms 3000 Watts Amplifier
